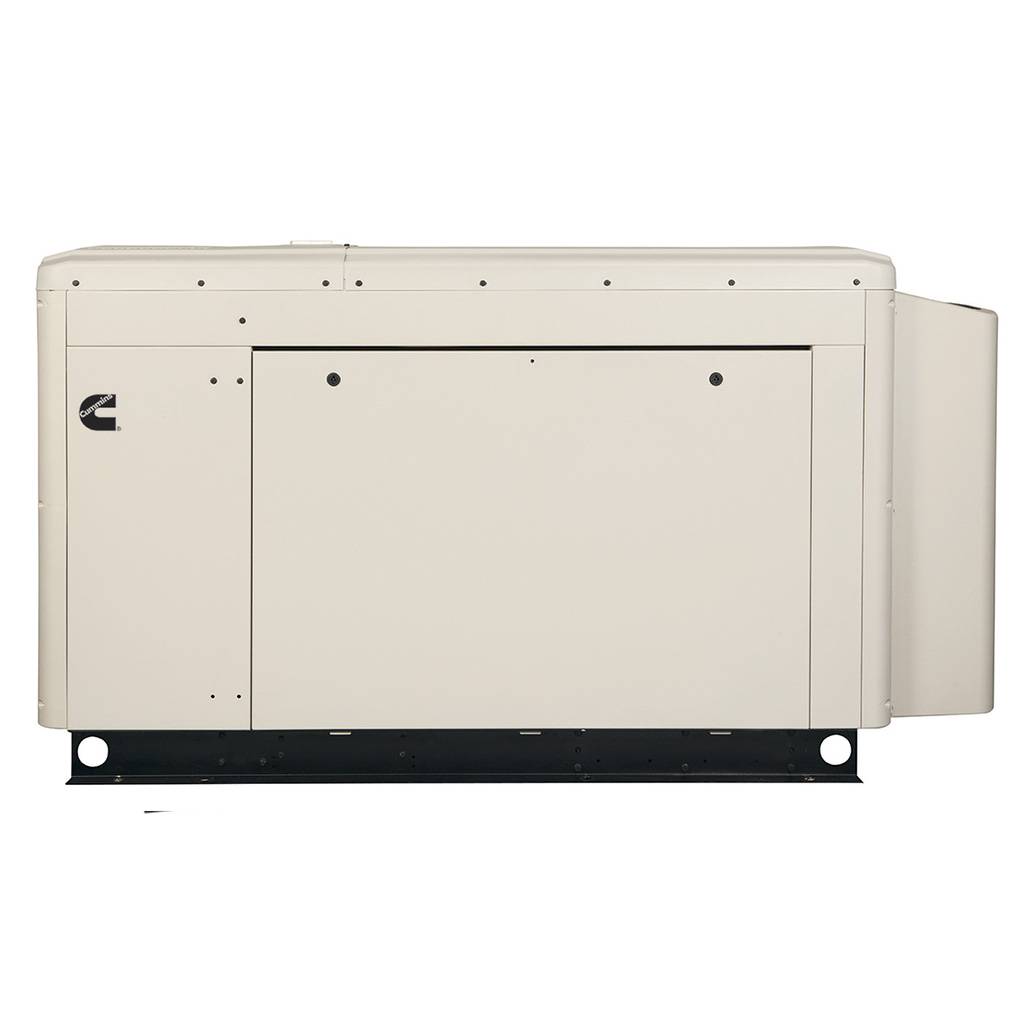

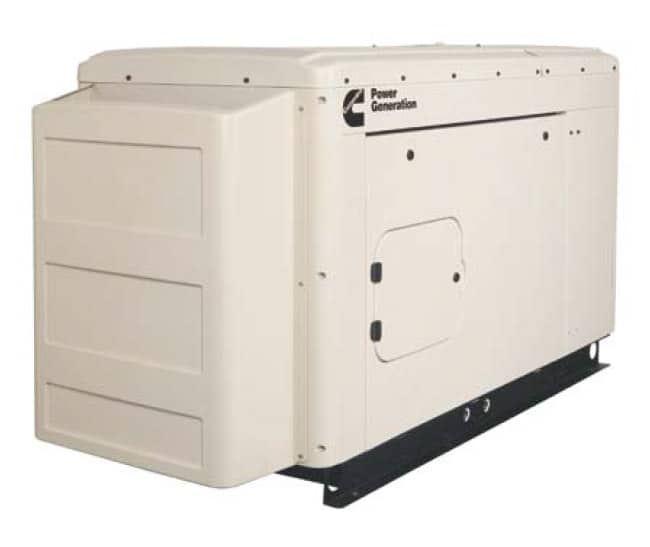

Cummins Power Quiet Connect 25kW Liquid Cooled Standby Generator Three Phase | RS25

  • Reliable Cummins Engine – QSJ2.4 engine for reliable power
  • Robust Product Design and Testing
  • Flexible Exercise mode duration that suits the customer’s preference – as little as 2 minutes every 6 months
  • Advanced Enclosure Design capable of withstanding winds up to 150 MPH
  • Self diagnostics and easy service
  • Control Systems – PowerCommand 1.1 control with 128 x 64 backlit LED display for improved user experience
  • Brushless Proven Alternator
  • Sound Attenuated – aluminum enclosure material plus durable powder coat paint
  • Limited Base Warranty – 2 Years/400 Hours Standby
SKU: RS25 Categories: , Tags: , ,

ROBUST PRODUCT DESIGN AND TESTING – The generator is designed to operate under extreme environmental conditions including cold weather starts at as low as -40 oF. The generator is tested and certified per the latest EPA, UL and IBC Seismic standards and is capable of meeting NFPA110 requirements when equipped with the necessary accessories and properly installed.

FLEXIBLE EXERCISE MODE – The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer’s preference – as little as 2 minutes every 6 months – reducing unnecessary fuel consumption, emissions and noise.

ADVANCED ENCLOSURE DESIGN – The aesthetically appealing enclosure incorporates special designs that deliver the quietest generator of its kind. Aluminum material plus durable powder coat paint provides the best anti-corrosion performance. The generator set enclosure has been evaluated to withstand 180 MPH wind loads in accordance with ASCE7-10. The intelligent design has removable panels and service doors to provide easy access for service and maintenance.

SELF DIAGNOSTICS AND EASY SERVICE – The generator is equipped with Cummins PowerCommand electronic control to provide industry-leading self diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time.

Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
25000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
25000 Watts
LP Power Capacity
25000 Watts
NG Fuel Consumption @ 50% Load
185.7 ft³/hr
NG Fuel Consumption @ 100% Load
309.5 ft³/hr
LP Fuel Consumption @ 50% Load
2.1 gallons/hr
LP Fuel Consumption @ 100% Load
3.5 gallons/hr
Rated Amps
104.2 Amps
Decibel Rating @ 7m
64 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (550 CCA)
Enclosure
Aluminum
Circuit Breaker Size
125 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
2400 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1147 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
72 Inches
Product Width
34 Inches
Product Height
45.5 Inches
Additional Model Numbers
RS25, A051Y239
