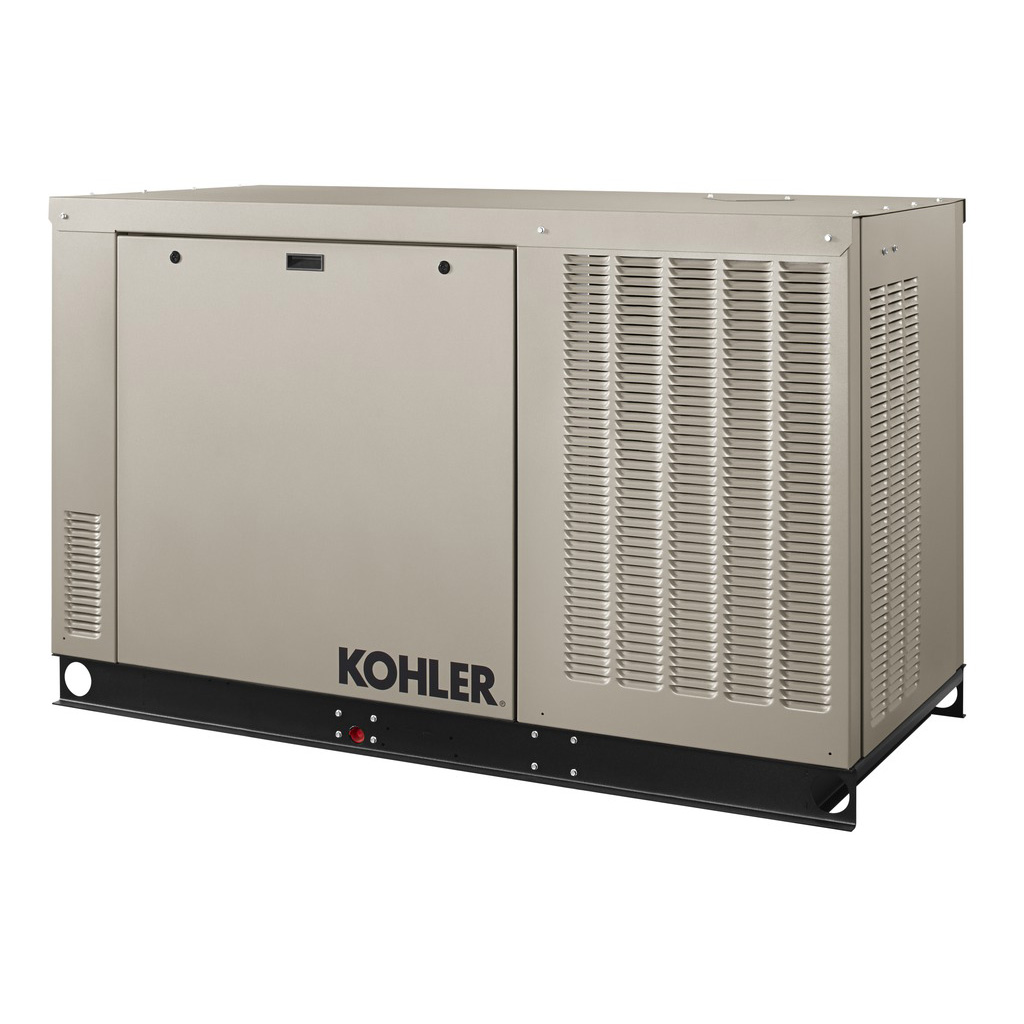

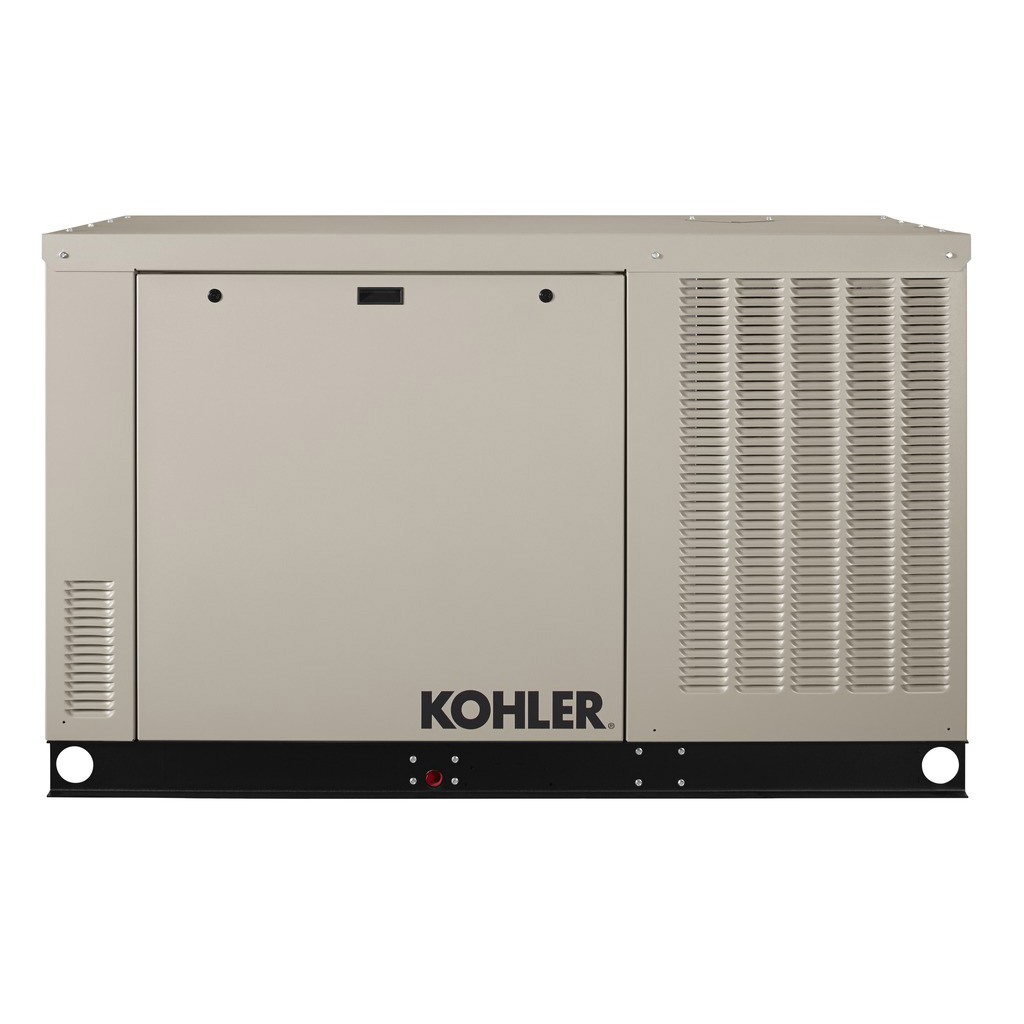

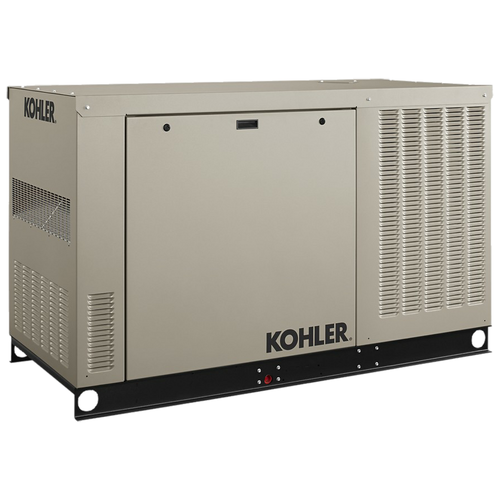

Kohler 24kW Generator RCL
Reliable power for large residential or small business needs. When the power goes out during a bad storm or power failure, your 24 kW KOHLER generator with industrial-grade engine keeps your home or business – from central air to sump pump to personal computers – up and running.*
Powerful
In just 10 seconds, your KOHLER generator automatically restores power and keeps you connected to the things you love to do.
Smart
You get steady, high-quality power that protects your electronics from damage related to low-quality power sources.
Premium warranty
We’ve got you covered with 5-year, 2,000-hour protection, and an aluminum enclosure that’s built to last.
Quiet
Neighborhood-friendly, with weekly exercise volume that’s similar to a normal conversation.
THE POWER YOU NEED
Powerful operation on either natural gas or liquid propane (LPG); the 24RCL provides 100 amps on LPG and 87 amps on natural gas.
Extraordinary peak motor-starting capacity, with 24RCL at 37kVA at 240V
Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics and appliances
Powered by Kohler KG2204 industrial-grade engine with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed 1800 rpm
THE CONVENIENCES YOU EXPECT
RDC2 controller designed for today’s sophisticated electronics manages both the generator set and Model RXT transfer switch functions
Extremely quiet operation with sound at 61 dBA at full speed and 54 dBA at exercise (normal conversation level)
Corrosion-resistant aluminum enclosure is standard
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
Compatible with optional OnCue Plus and OnCue Plus Wireless Generator Management Systems, Programmable Interface Module (PIM) and Load Control Module (LCM) or Load Shed kit (LCM or Load Shed Kit compatible with single phase generators only).
| Rated kW LP | 23 kW |
|---|---|
| Rated kW NG | 21 kW |
| Amps LP | 100 Amps |
| Amps NG | 87 Amps |
| Peak Motor Starting kVA @240 V | 59 kVa |
| Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement | 2.2 L (134.25 cu. in.) |
| Horsepower | NG 36 HP, LP 40 HP |
| Enclosure Material | Aluminum |
| Sound Output During Weekly Exercise | 54 dB(A) |
| Sound Output During Full-speed Operation | 61 dB(A) |
| Response Time | 10 Seconds |
| Warranty | Premium five-year limited warranty |
| Country of Origin | US |
| Certifications/Listings | UL 2200|EPA|CSA |
| Automatic Transfer Switch Included | No |
| Remote Monitoring Available | Yes |
| Off Grid Warranty | N/A |
| Off Grid / Utility Backup | Utility Backup |
| Weight | 1260 lbs. |
| Alternator Type | 4-Pole, Rotating Field |
| Fuel Consumption on NG at 50% load? | 199 cfh |
| Fuel Consumption on LP at 50% load? | 84 cfh |
| Controller | RDC2 Controller |
| Cylinder Arrangement | Inline-4 cylinder |
| Dimensions | 1880 mm x 836 mm x 1169 mm (74 in. x 32.9 in. x 46.0 in.) |
| Engine Manufacturer/Description | KOHLER |
| Engine Model | KG2204, 2.2L, 4-Cycle |
| Engine/Alternator RPM | 1800 RPM |
| Fuel Type | Natural Gas|LPG |
| Frequency | 60 Hz|50 Hz |
| Phase | Single Phase or Three Phase |
| Voltage @ 60 Hz | 120/240 |
| Digital Voltage Regulation | 1.0% |
| Built in Mounting Pad | No |
